COBRA™ In Ground Traffic Spike System
Traffic Spike Warning Signs must be used with one way directional control traffic spikes to warn drivers that a one-way traffic lane exists and that severe tire damage may occur.
Mounts to a 2 3/8" OD Pipe Post
Traffic Spike Warning Signs Should Always Be Installed to Warn Drivers & Pedestrians

5 MPH Rule Needs to Be Strictly Enforced When Crossing One Way Directional Traffic Control Spikes.

Use Speed Bumps to control vehicle speed if necessary.
2 Sided Reflective 18"X24" Warning Sign
Heavy Gauge Aluminum Insert Surrounded by a 14 Gauge Steel Tube Frame and a mounting point for a 2 3/8" OD Pipe Post. This sign is highly reflective and requires no power source.
NO POWER REQUIRED - HIGHLY REFLECTIVE
Traffic Spike Warning Sign - Reflective No Electricity Required
5 MPH Rule must be strictly enforced when crossing any directional traffic spike system
Traffic Spike Warning Signs - Lighted Power is Required
Mounts to a 3" OD Pipe Post
Not Supplied

• Warning sign includes automatic light sensor
• Two 20-watt fluorescent bulbs
• Flood lamp to illuminate spikes
• Mounts on 3" post (not supplied)

 24" H x 24" W x 8" D
 61cm W x 61cm H x 20.3cm D

Operates on 115 VAC, 1.75 Amp
Two 20-watt fluorescent bulbs
150-watt flood lamp
Built-in light sensor
Secure On/Off switch
Galvanized steel housing painted white
ETL Listed
A Warning Sign is typically used with traffic control spikes to warn drivers that a one-way lane condition exists and that proceeding through the lane in the wrong direction will result in severe tire damage. The red side of the sign warns drivers to stop, while the green side warns them not to back up. With the built-in light sensor, the sign automatically illuminates at dusk and turns off at dawn.
This sign is also available in a lighted version
Model 11300 - 3 Footer

11300.100 - 3′ (914mm) – Safety Red – 80 lbs.
11300.120 - 3′ (914mm) – Galvanized & Painted Safety Red – 80 lbs.
11300.130 – 3′ (914mm) - Powder Coated Safety Red – 80 lbs.

Model 11600 - 6 Footer

11600.100 - 6′ (1829mm) - Safety Red – 166 lbs.
11600.120 - 6′ (1829mm) – Galvanized & Painted Safety Red – 166 lbs.
11600.130 - 6′ (1829mm) - Powder Coated Safety Red – 166 lbs.

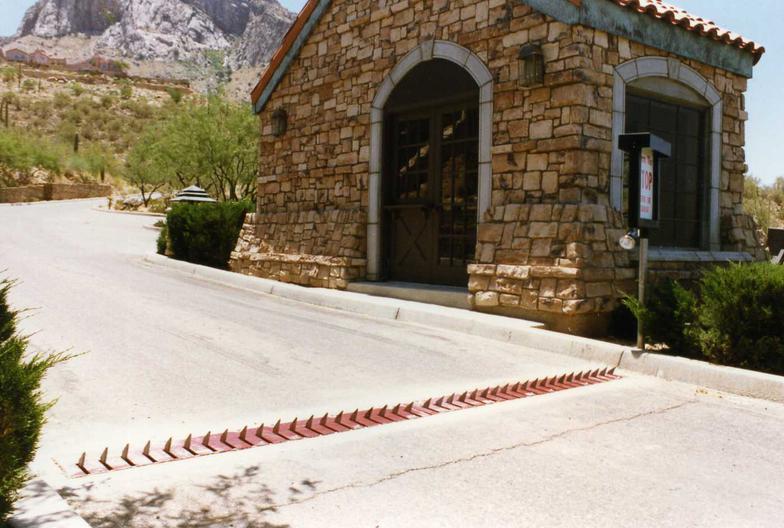

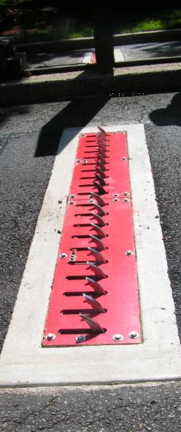

The COBRA™ in ground flush mounted traffic spike system can be used in all commercial and residential applications. This product is great for low profile traffic! Speed bumps are highly recommended with this product.  5 MPH when crossing any directional control traffic spike.
Flush mounted in ground spikes are perfect for low profile vehicles.  Smooth passage when crossing and the teeth won't touch the under chassis of sports cars and low profile vehicles.

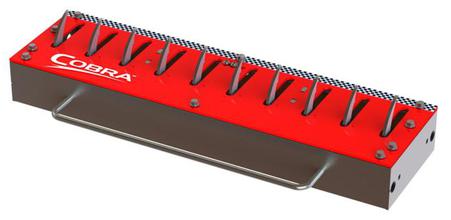

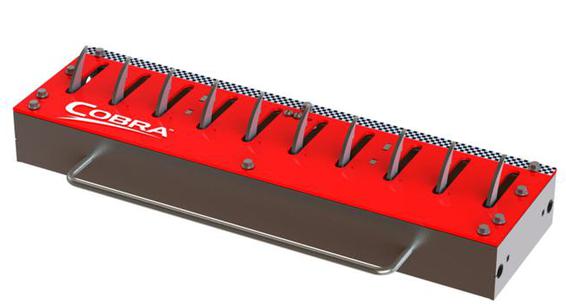

3 Foot

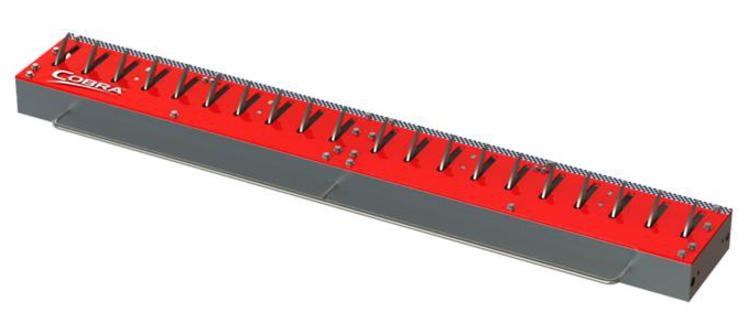

6 Foot

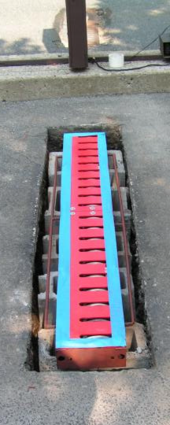

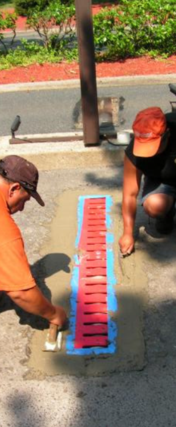

Traffic Spike Installaton Instructions
Copyright © 2015 Secure Lane LLC, All Rights Reserved | All Sales are Final Terms
Contact the webmaster at: christine@secure-lane.com
3618 S. Calexico Ave. Tucson, AZ 85730 USA (520)780-9751

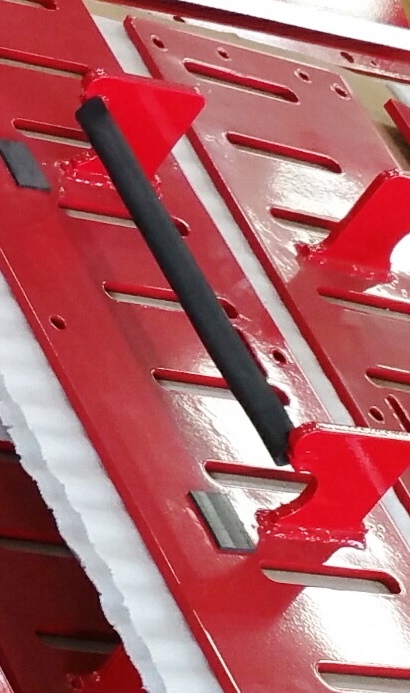

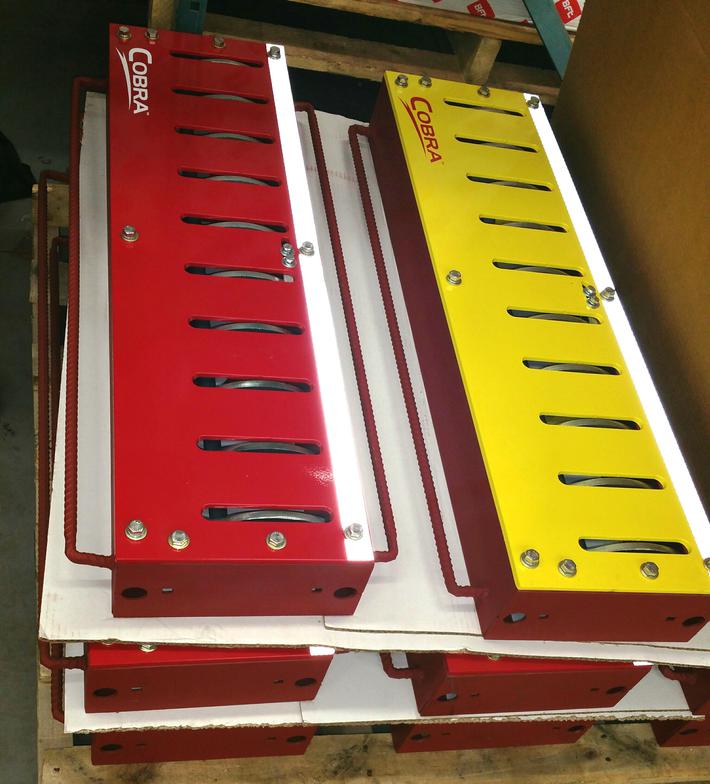

COBRA™In Ground Flush Mount Traffic Spikes ready to be packaged and shipped.
  • 1/4″ Top Plate
  •  Top Down Design – Not Bottom Up
  •  Durable Counter Balanced System
  •  Heavy Duty Steel Construction
  •  Reliable Zinc Plated Moving Parts
  •  Stainless Steel Hardware
  •  Positive Stop Eliminates Wear
  •  Specially Engineered Teeth
  •  Built-In Latch down Device
  •  Conditioned for Heater Cable System
  •  Load Rated: 7.5 Tons or 15,000 lbs per Single Axle Load
  •  Made in USA
Occasional garbage truck or school bus
