Secure Lane LLC,Vehicle  Access Control Products

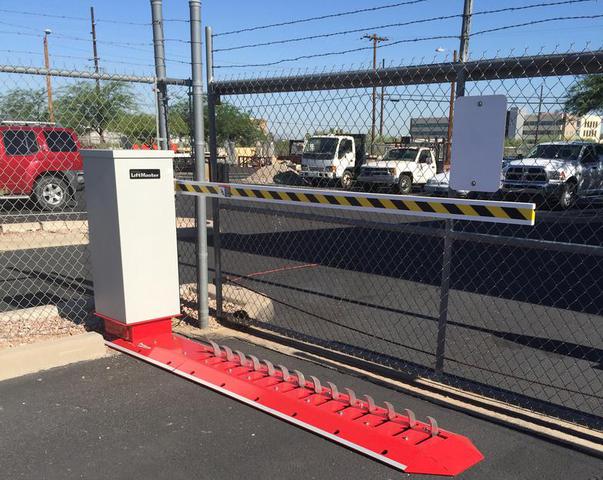

PROTECTOR EXTREME™ Motorized Surface Mount  Traffic Spike System
Standard Size – 12′ (3.5 m) - 830 lbs, 377 kg
Available 15′ (4.5 m) & 18′ (5.5 m)


The PROTECTOR EXTREME™ 13600 is a fully integrated electromechanical, highly-efficient,Surface Mount Spike Barrier System that is all steel construction with a full-featured gate barrier system with optional boom arm. The heavy-duty AGGRESSIVE steel penetrating spikes are engineered to puncture the tire system of intruding vehicle. This model is great for controlling one way directional traffic in a high security location.

Model 13600

The PROTECTOR EXTREME™ is a totally self contained aggressive vehicle
barrier system with the following features and benefits:

• Heavy duty steel construction
• 6” (152mm) High Steel Teeth with DIS-ABLER™
• Electromechanical - no hoses or hydraulic oil
• 115VAC operation
• Continuous Duty Cycle Motor
• Convenient top plate access
• Full-featured electronic circuity
• Integrates with all access control devices
- Push button - Radio Receiver/Transmitter
- Intercom - Telephone
- Keypad - Card Reader - RFID - Biometrics - Token/Coin
- Loops - Open/Close
• Integrated gate arm boom
• Integrated Stop-Go Light
• Opening/closing time - 2.5 seconds
• Temperature range -22°F to +122°F
• Can be setup for a manned or unmanned facility
• Trouble free and reliable operation


The PROTECTOR EXTREME™ is a fully integrated electromechanical, highly-efficient, Spike Barrier System that is an all steel construction with a full-featured gate barrier system with boom arm.

The AGGRESSIVE 6" heavy-duty steel penetrating spikes are engineered to puncture and disable the tire system of intruding vehicle.

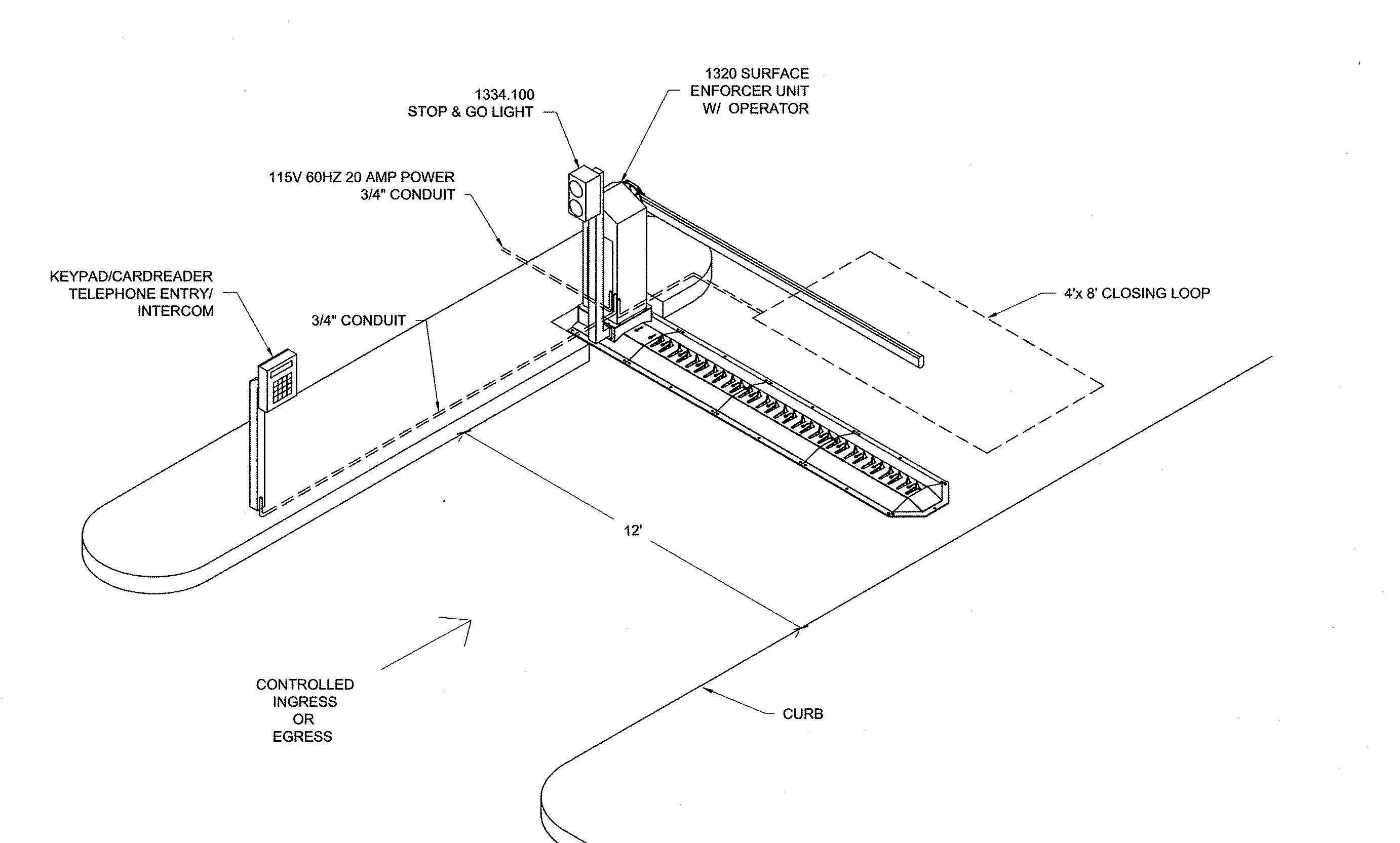

The surface mount spikes are easy to install on to the asphalt or concrete roadway using anchor bolts or epoxy. The surface mounted spike ramps also serve as a traffic calming speed bump.


The unit will accept all access control devices such as remotes, push buttons, loops, bio-metrics and radio frequency identification systems.

Motorized traffic spike systems provide reliable access traffic control by electromechanically moving the teeth up to an active or secured position, and then down to allow unrestricted passage to authorized vehicles.
Optional Items

• Stop-Go Light
• Loops and Loop Detection
• Safety Photo Eye Beams
• Warning Signs and Posts
• Audible Warning System
• Strobe Warning Light System
• LED Lighting Strips
• Bollards & Protective Posts
• Custom Widths
• Heater Cables
• Access Control Devices
6” (152mm) High Steel Teeth with DISABLER™

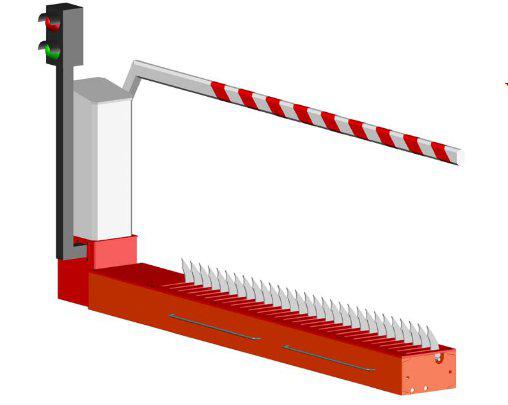

PROTECTOR EXTREME™ Motorized In Ground  Traffic Spike System
Standard Size – 12′ (3.5 m) - 830 lbs, 377 kg
Available 15′ (4.5 m) & 18′ (5.5 m)


The PROTECTOR™ 13500 is a fully integrated electromechanical, highly-efficient, In Ground Spike Barrier System that is all steel construction with a full-featured gate barrier system with optional boom arm. The heavy-duty AGGRESSIVE steel penetrating spikes are engineered to puncture the tire system of intruding vehicle. This model is great for controlling one way directional traffic in a high security location.

Model 13500

The PROTECTOR EXTREME™ is a totally self contained aggressive vehicle
barrier system with the following features and benefits:

• Heavy duty steel construction
• 6” (152mm) High Steel Teeth with DIS-ABLER™
• Electromechanical - no hoses or hydraulic oil
• 115VAC operation
• Continuous Duty Cycle Motor
• Convenient top plate access
• Full-featured electronic circuity
• Integrates with all access control devices
- Push button - Radio Receiver/Transmitter
- Intercom - Telephone
- Keypad - Card Reader - RFID - Biometrics - Token/Coin
- Loops - Open/Close
• Integrated gate arm boom
• Integrated Stop-Go Light
• Opening/closing time - 2.5 seconds
• Temperature range -22°F to +122°F
• Can be setup for a manned or unmanned facility
• Trouble free and reliable operation


The PROTECTOR EXTREME™ is a fully integrated electromechanical, highly-efficient, Spike Barrier System that is an all steel construction with a full-featured gate barrier system with boom arm.

The AGGRESSIVE 6" heavy-duty steel penetrating spikes are engineered to puncture and disable the tire system of intruding vehicle.

The in ground spikes are easy to install in to the asphalt or concrete roadway and requires trenching, excavating and concrete.  In ground flush mounted spike sections create smooth passage.


The unit will accept all access control devices such as remotes, push buttons, loops, bio-metrics and radio frequency identification systems.

Motorized traffic spike systems provide reliable access traffic control by electromechanically moving the teeth up to an active or secured position, and then down to allow unrestricted passage to authorized vehicles.
Optional Items

• Stop-Go Light
• Loops and Loop Detection
• Safety Photo Eye Beams
• Warning Signs and Posts
• Audible Warning System
• Strobe Warning Light System
• LED Lighting Strips
• Bollards & Protective Posts
• Custom Widths
• Heater Cables
• Access Control Devices
6” (152mm) High Steel Teeth with DISABLER™
