Secure Lane LLC,Vehicle  Access Control Products

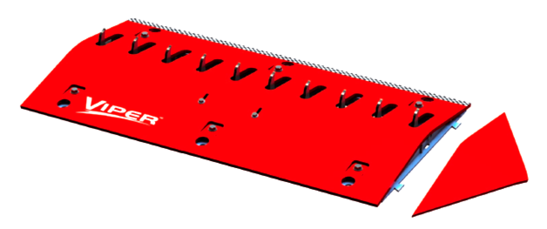

VIPER™ Low Profile Surface Mount Traffic
Spike System



12320.100 - 3′ (914mm) – Safety Red - 114 lbs.
End Bevel – Set of 2 – Part #12320.190
12320.120 - 3′ (914mm) – Galvanized & Powder Coated Safety Red - 114 lbs.
End Bevel – Set of 2 – Part #12320.192
12320.130 – 3′ (914mm) - Powder Coated Safety Red - 114 lbs.
End Bevel - Set of 2 – Part #12320.194

  • 3/8” Steel Top Plate
  • Top Down Design- Not Bottom Up
  • Counter Balanced & Spring Loaded
  • Heavy Duty Steel Construction
  • Reliable Zinc Plated Moving Parts
  • Positive Stop Eliminates Wear
  • Specially Engineered Teeth
  • Stainless Steel Hardware
  • Built-In Latch Down Device
  • End Bevels Recommended
  • Conditioned for Heater Cable System
  • Load Rated: 18 Tons or 36,000 lbs per Single Axle Load
  • Made in the USA
Overall height of ramp & spikes is 3.44"
Now that's low profile sports car safe!
The Perfect Surface Mounted Directional Traffic Spike Controller for office parking lots, apartment complexes, home sub divisions, airports, car rental lots and military bases.
Easy to Install 3' X 19.5" Surface Mounted Sections, 3/8" Thick Steel Plate, Overall Height 3.44".  MILITARY TOUGH - SPORTS CAR FRIENDLY
Won't touch the underside chassis of low profile cars
Two 3 foot sections and a set of end caps
Traffic Spike Warning Signs must be used with one way directional control traffic spikes to warn drivers that a one-way traffic lane exists and that severe tire damage may occur.
Mounts to a 2 3/8" OD Pipe Post
Traffic Spike Warning Signs Should Always Be Installed to Warn Drivers & Pedestrians

5 MPH Rule Needs to Be Strictly Enforced When Crossing One Way Directional Traffic Control Spikes.

Use Speed Bumps to control vehicle speed if necessary.
2 Sided Reflective 18"X24" Warning Sign
Heavy Gauge Aluminum Insert Surrounded by a 14 Gauge Steel Tube Frame and a mounting point for a 2 3/8" OD Pipe Post. This sign is highly reflective and requires no power source.
NO POWER REQUIRED - HIGHLY REFLECTIVE
Traffic Spike Warning Sign - Reflective No Electricity Required
5 MPH Rule must be strictly enforced when crossing any directional traffic spike system
Traffic Spike Warning Signs - Illuminated - Power is Required
Mounts to a 3" OD Pipe Post
Not Supplied

• Warning sign includes automatic light sensor
• Two 20-watt fluorescent bulbs
• Flood lamp to illuminate spikes
• Mounts on 3" post (not supplied)

 24" H x 24" W x 8" D
 61cm W x 61cm H x 20.3cm D

Operates on 115 VAC, 1.75 Amp
Two 20-watt fluorescent bulbs
150-watt flood lamp
Built-in light sensor
Secure On/Off switch
Galvanized steel housing painted white
ETL Listed
A Warning Sign is typically used with traffic control spikes to warn drivers that a one-way lane condition exists and that proceeding through the lane in the wrong direction will result in severe tire damage. The red side of the sign warns drivers to stop, while the green side warns them not to back up. With the built-in light sensor, the sign automatically illuminates at dusk and turns off at dawn.
This sign is also available in a lighted version
Overall height of only 3.44"
Sports Car Friendly
